KEENSERTS® PTC POWER TOOL HYDRO-PNEUMATIC TOOLS FOR CAMLOC® KEENSERTS® inserts
Features

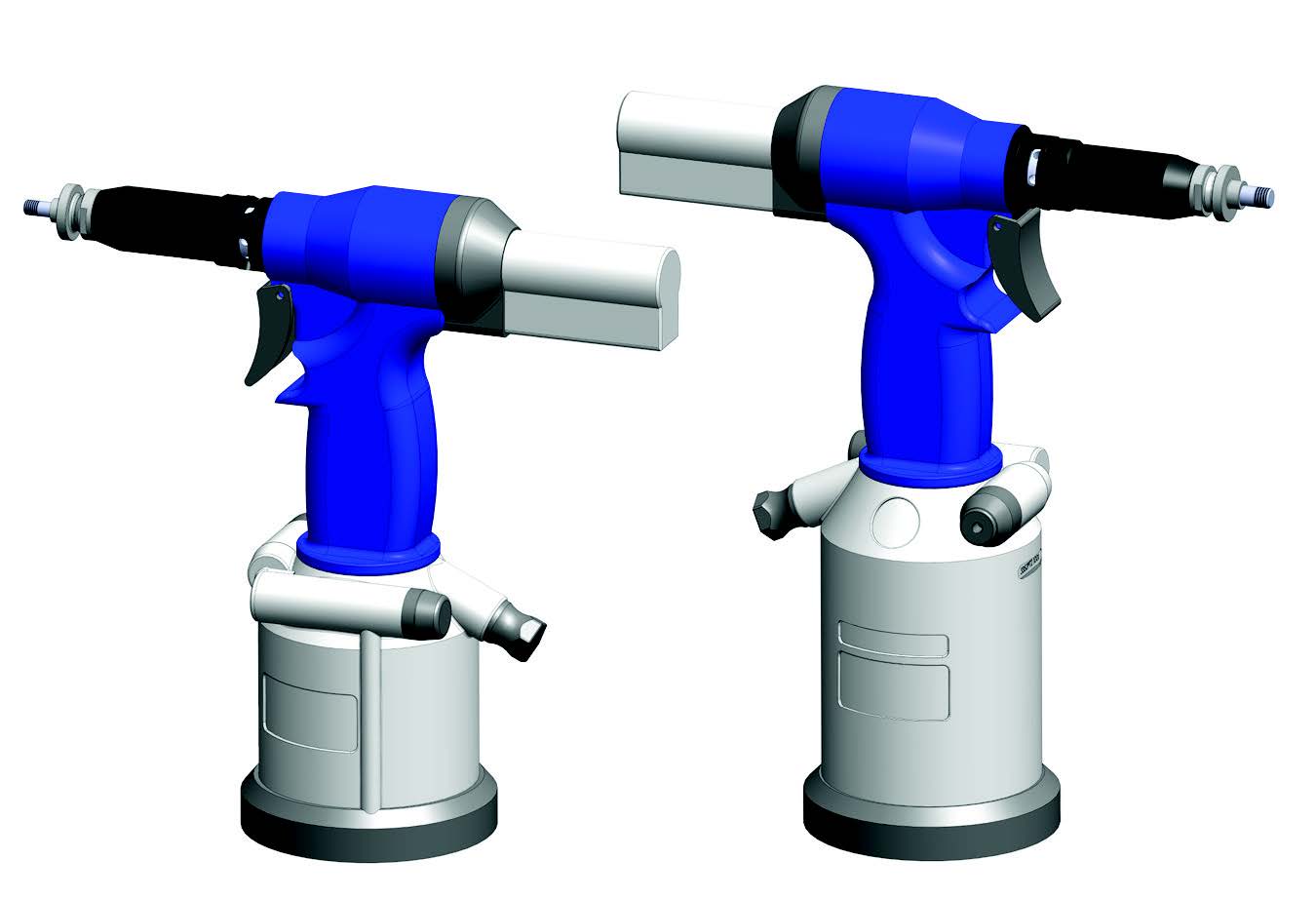

• The hydro-pneumatic Power Tool 3352PTC-1 is designed to install metric KEENSERTS inserts from sizes M5 to M12 and imperial sizes from 1032/1024 to 813/820. The slightly larger Power Tool 3352PTC-2 has an extended spindle stroke. This allows even metric KEENSERTS inserts of
sizes M5 to M24 to be installed quickly and efficiently.
• Due to the force control of the tools, individual adjustment is possible for the KEENSERTS inserts sizes or surrounding materials is possible.
• The one-button operation makes it easy to learn how to use the tools. The KEENSERTS inserts can be installed quickly and reliable.
• The hydro-pneumatic system is low maintenance, ergonomic and lightweight.
• Please note: Both the Power Tool 3352PTC-1 and the 3352PTC-2 are supplied in the basic version without Nosepieces has to be ordered seperatly.
The power tool (3352PT1 or 3352PT2) is supplied without Nosepieces for installing the the KEENSERTS inserts.
Please order the Nosepieces that is appropriate for your application in addition to the basic tool.

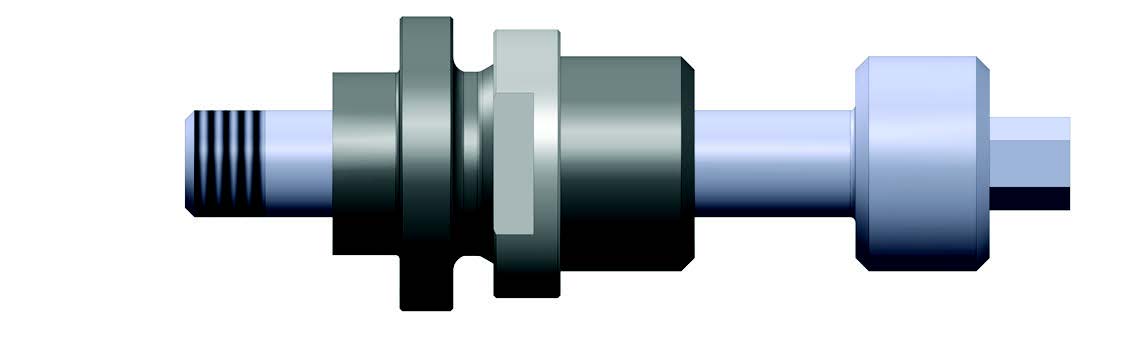

Nosepieces < M12
Mandrel, driver and lock nut are part of a nosepiece set for KEENSERTS inserts installation.
The Nosepiece for various KEENSERTS types are of modular design. In addition to each Nosepiece set, all components of the set are also available as indi vidual parts. In addition to simplified spare parts ordering and reduced inventory, multiple use of components can be realized. For example, the same mandrel and lock nut can be used for both KEENSERTS inserts type KNM6 and KNHM6. Only a different driver piece is required. For the self-locking variant, the same nose piece can be used.
Nosepieces > M16
For metric KEENSERTS inserts with an internal thread of M16 (KNHM16x2.0) and above, the Nosepieces are constructed differently and cannot be offered in a modular system.

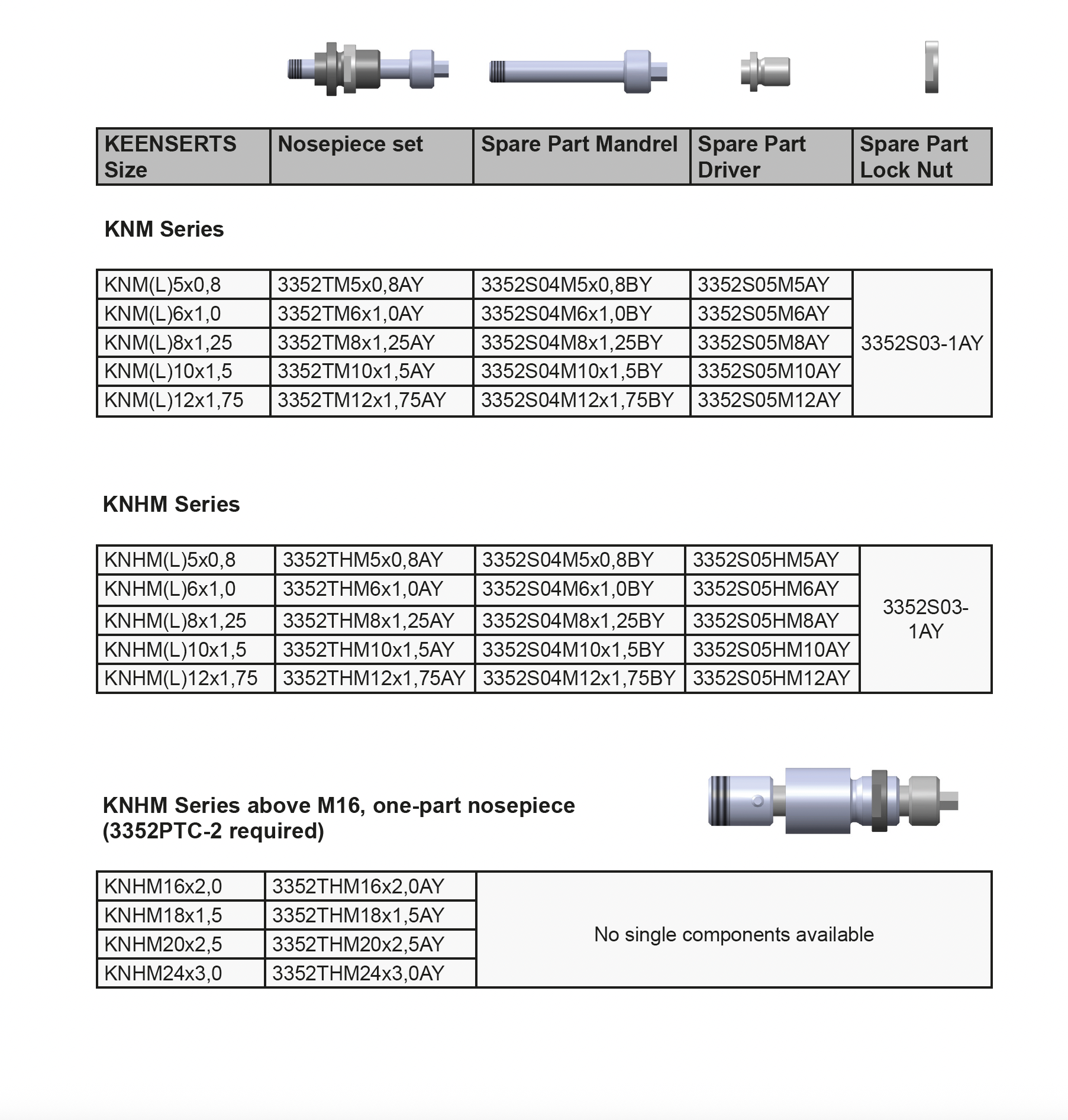

Available metric Nosepieces

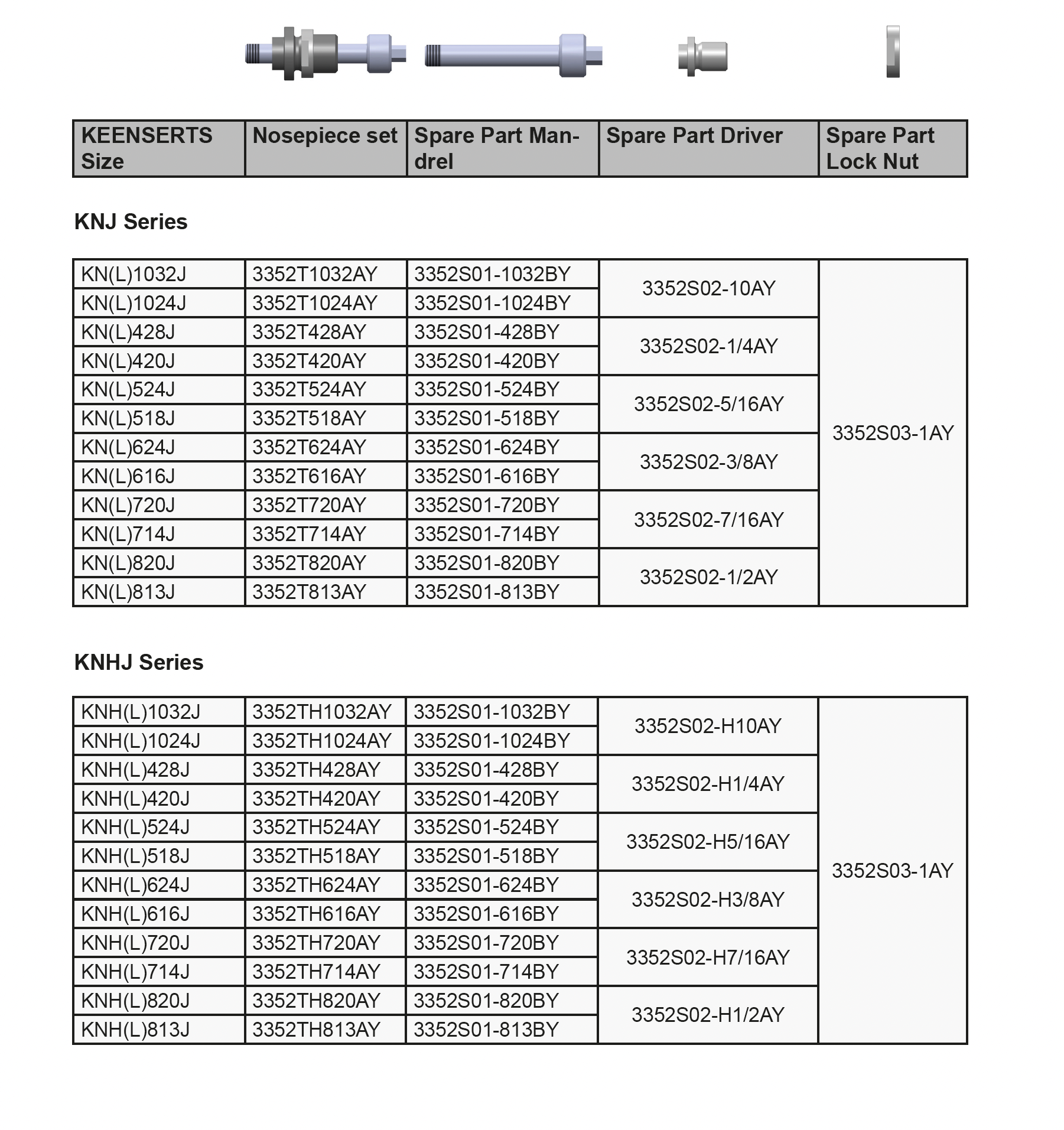

Available imperial Nosepieces
